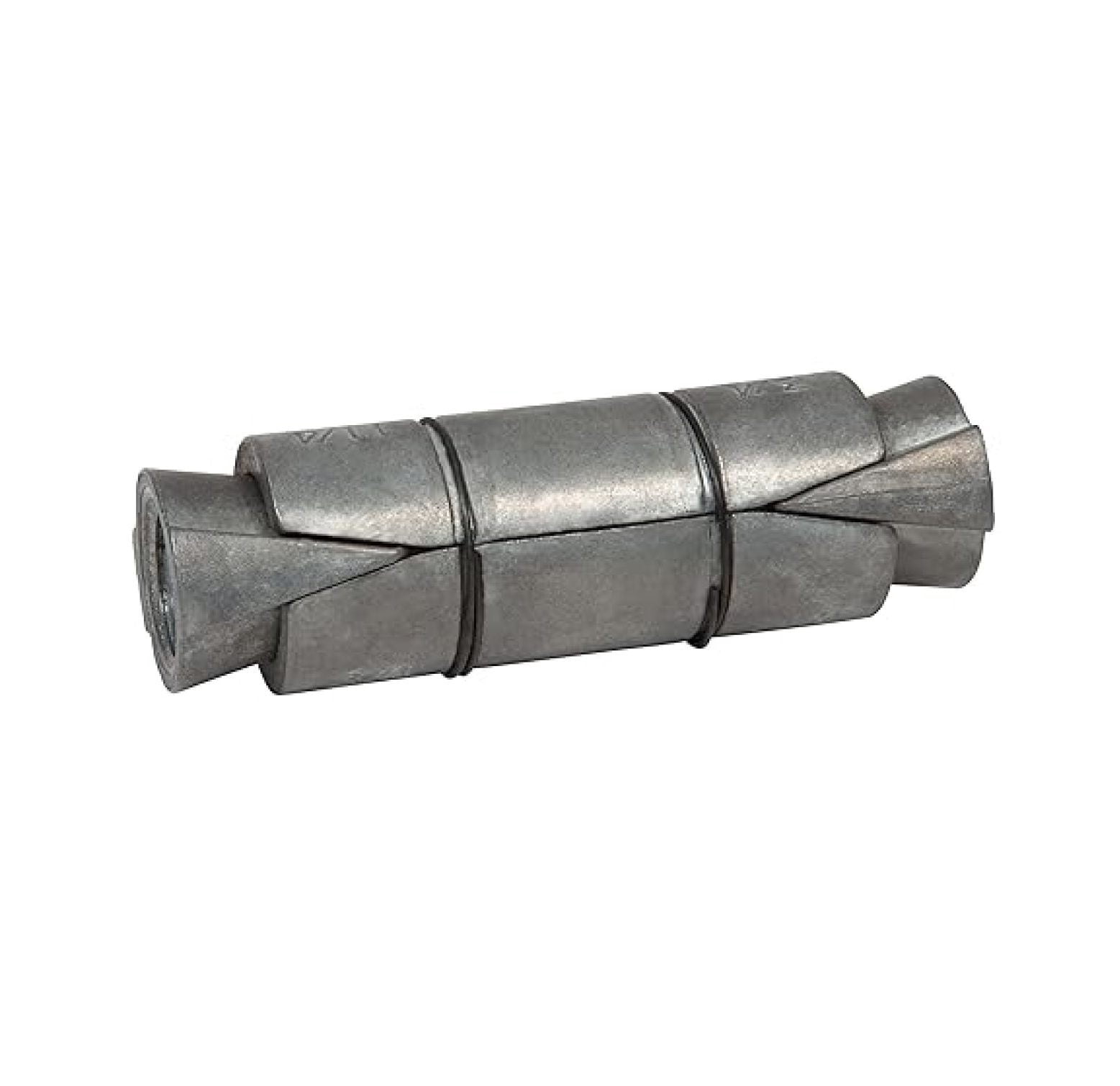

1/2" (Inside/Screw 1/2" - 13) Double Expansion Anchor (20 per Box)

ApplicationsThe anchor is made from Zinc Alloy. This anchor is designed for use in Concrete, Block, and Brick.EnvironmentThe anchor is designed for use in a Moist environment.Hole Diameter/Bit DiameterThe anchor requires a 7/8" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.Minimum EmbedmentThe minimum anchor embedment into the concrete is 2-1/2". Therefore, the anchor must be installed so that a minimum of 2-1/2" of the anchor is embedded into the concrete.Spacing between AnchorsEach anchor must be spaced a minimum distance of 8-3/4" from each other when measured center to center.Edge DistanceIt is very important not to install the anchor any closer than 4-3/8" from an unsupported edge of the concrete.

• CORROSION RESISTANT BODY - Anchor body can be used in environments where moisture may be present
• EXPANDS THE WHOLE LENGTH OF ANCHOR - Excellent performance in base material of questionable strength
• INTERNAL THREADS - Easy to remove
• ACCEPTS BOLTS WITH COARSE THREADS - Common type of fastener which is easy to find
• EVERY DIAMETER AVAILABLE IN ONE LENGTH - Selection simply requires choosing a diameter and then selecting the anchor
