Tuhorse 2HP 4" Submersible Well Pump Complete Set Incl Motor, Pump-end and Control Box. 300ft Maxhead, Rated 23gpm, 30gpm Max. 1-phase 230v, 60hz, 1 year warranty, (TH4-023-10)

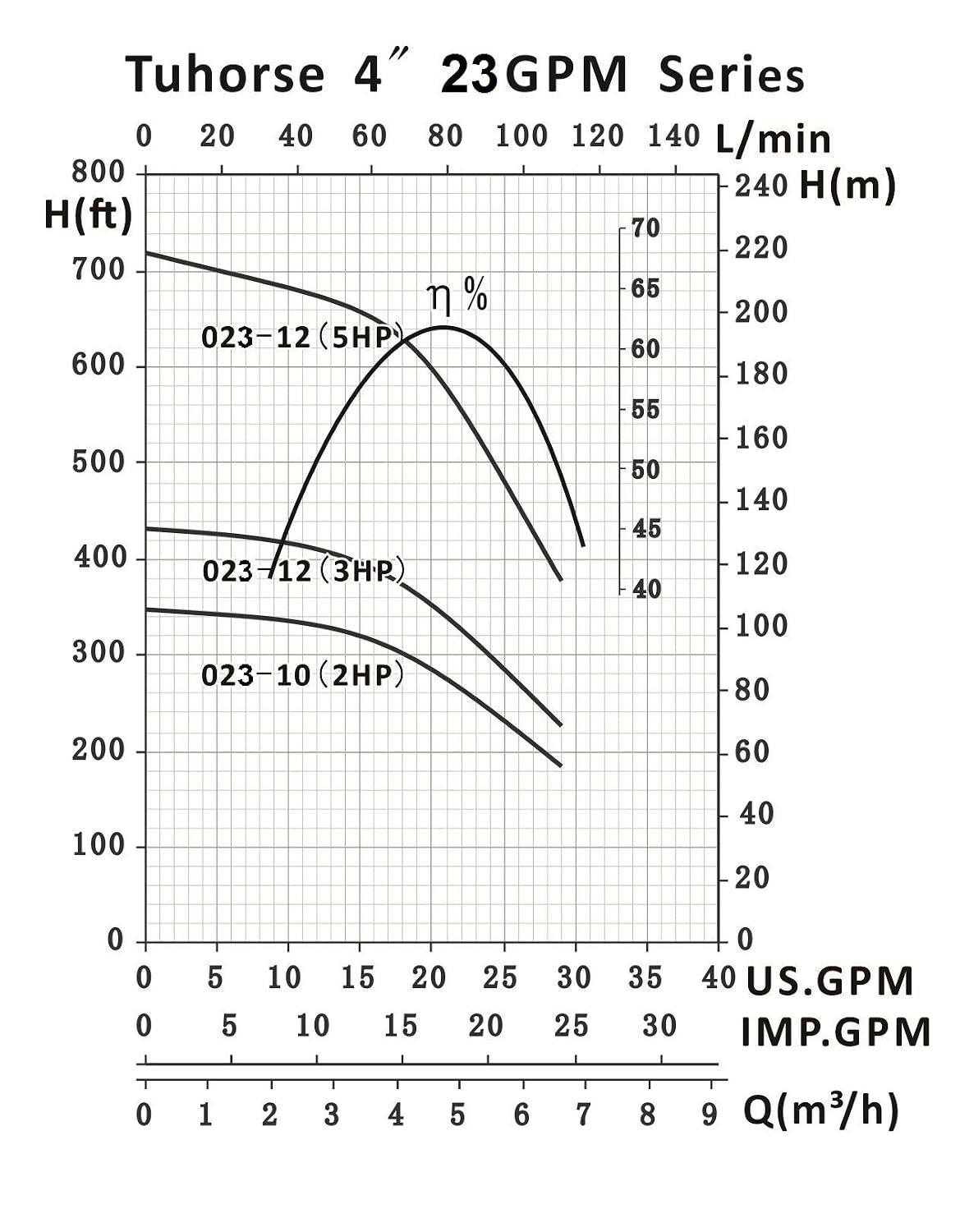

This complete submersible well pump set includes a 10 stage pump-end, a 2HP heavy duty oil cooled submersible motor, and a dual capacitor metal cased control box equipped with motor overload protectors. Rated Flow 23GPM. Flow at typical depths: 26GPM at 180ft., 22GPM at 233ft., 17.6GPM at 259ft. 13.2GPM at 275ft. Connector terminal inside the control box accepts up to AWG #6 wire. This pump runs on 230V, 60Hz, Single Phase Power, and the motor uses 3 wires + 1 ground wire. Net weight 40Lb.(18Kg); Net length: 38.5” (970mm). 1 year warranty. external check valve(not included) is required in a water tight system but is not required for free flow applications.

• Just slightly under 4" diameter, fits 4" and larger wells
• 1.5 inch NPT brass outlet (discharge) with built-in check valve
• 10 Stages. Cut off head 300 feet. Max flow(5-100 feet): 30GPM
• Metal cased control box includes a 100uF start and 30uF run capacitor
• Meets NEMA industrial standards, manufactured under ISO 9001:2000, conforms to IEC34-ICE standards.
